🎯 Complete Guide to OOP Relationships & Coupling

📚 What Will You Learn?

OOP Relationships

1. 🔗 IS-A Relationship (Inheritance)

📖 Simple Explanation:

When we say "A IS-A B", it means A is a type of B. Like saying "Dog is a type of Animal".

🌍 Real World Example:

  • Car IS-A Vehicle
  • Apple IS-A Fruit
  • Student IS-A Person

💻 Java Code Example:

// Parent class (general)
class Animal {
    void eat() {
        System.out.println("Animal is eating");
    }

    void sleep() {
        System.out.println("Animal is sleeping");
    }
}

// Child class (specific) - Dog IS-A Animal
class Dog extends Animal {
    void bark() {
        System.out.println("Dog is barking: Woof!");
    }
}

🎯 How to Use:

public class Main {
    public static void main(String[] args) {
        Dog myDog = new Dog();

        // Dog can do everything Animal can do
        myDog.eat();    // From Animal class
        myDog.sleep();  // From Animal class

        // Plus its own special things
        myDog.bark();   // From Dog class
    }
}
Output:
Animal is eating
Animal is sleeping
Dog is barking: Woof!
Remember: Use IS-A when you want to say "This thing is a type of that thing"

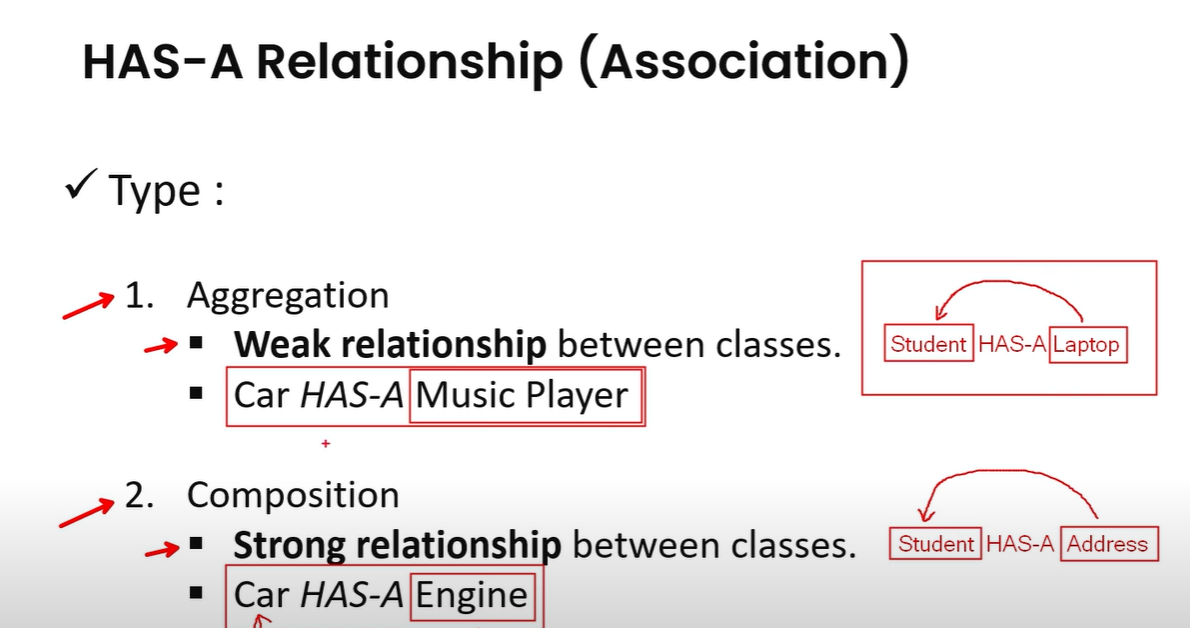

2. 🏠 HAS-A Relationship (Association, Aggregation, Composition)

OOP Relationships `

📖 Simple Explanation:

HAS-A means one class contains or uses another class. There are 3 types:

🌍 Real World Examples:

  • Aggregation: Car HAS-A MusicPlayer (can be added/removed)
  • Composition: Car HAS-A Engine (tightly bound and essential)

💻 Java Code Examples (With Comments):

🔹 Aggregation: Car HAS-A MusicPlayer

// Aggregation Example

// MusicPlayer class - can exist independently
class MusicPlayer {
    void play() {
        System.out.println("Playing music...");
    }
}

// Car class that receives MusicPlayer from outside (Aggregation)
class Car {
    private MusicPlayer player; // Aggregation: Car HAS-A MusicPlayer

    // Constructor that accepts a MusicPlayer object as parameter
    Car(MusicPlayer player) {
        // 'this' keyword refers to the current object's variable
        this.player = player;
        // This means: assign the passed-in MusicPlayer to the car's own player
    }

    void usePlayer() {
        System.out.println("Car using music player:");
        player.play(); // Using the aggregated MusicPlayer object
    }
}

🔸 Composition: Car HAS-A Engine

// Composition Example

// Engine class - represents the essential component of a Car
class Engine {
    String type;

    // Constructor to initialize engine type
    Engine(String type) {
        this.type = type;
    }

    void start() {
        System.out.println(type + " engine starting...");
    }
}

// Car class that creates its own Engine internally (Composition)
class Car {
    private Engine engine; // Composition: Car HAS-A Engine

    // Constructor that creates the Engine object inside
    Car(String engineType) {
        this.engine = new Engine(engineType); // Object created internally → strong binding
    }

    void startCar() {
        System.out.println("Starting car...");
        engine.start(); // Using the composed Engine object
    }
}

🎯 How to Use:

public class Main {
    public static void main(String[] args) {
        // Aggregation: passing the object from outside
        MusicPlayer player = new MusicPlayer();  // Independent object
        Car carWithMusic = new Car(player);      // Injected into Car
        carWithMusic.usePlayer();

        // Composition: object created inside the class
        Car carWithEngine = new Car("Diesel");   // Engine created within Car
        carWithEngine.startCar();
    }
}
Output:
Car using music player:
Playing music...
Starting car...
Diesel engine starting...
💡 Key Technical Terms:
- this.player = player; → "this" refers to the current object's variable; helps distinguish from parameter.
- Aggregation → Object passed from outside, can exist independently.
- Composition → Object created inside class, tightly bound to the lifecycle.
- Both show "HAS-A" relationships in object-oriented design.

3. 🤝 USES-A Relationship (Dependency)

📖 Simple Explanation:

When we say "A USES-A B", it means A uses B to do something, but doesn't own B. Like "Driver uses a Car".

🌍 Real World Example:

  • Student USES-A Library (doesn't own it)
  • Chef USES-A Kitchen (might not be his kitchen)
  • Teacher USES-A Whiteboard (school's whiteboard)

💻 Java Code Example:

// Class that can be used
class Printer {
    void print(String document) {
        System.out.println("Printing: " + document);
    }
}

// Class that USES another class
class Student {
    private String name;

    Student(String name) {
        this.name = name;
    }

    // Student USES-A Printer
    void printAssignment(Printer printer, String assignment) {
        System.out.println(name + " wants to print assignment");
        printer.print(assignment);  // Using the printer
        System.out.println("Assignment printed successfully!");
    }
}

🎯 How to Use:

public class Main {
    public static void main(String[] args) {
        // Create objects
        Printer libraryPrinter = new Printer();
        Student john = new Student("John");
        Student mary = new Student("Mary");

        // Both students can USE the same printer
        john.printAssignment(libraryPrinter, "Math Homework");
        mary.printAssignment(libraryPrinter, "Science Project");
    }
}
Output:
John wants to print assignment
Printing: Math Homework
Assignment printed successfully!
Mary wants to print assignment
Printing: Science Project
Assignment printed successfully!
Remember: Use USES-A when one thing uses another temporarily, but doesn't own it

4. ❌ Tight Coupling (Bad Way)

📖 Simple Explanation:

Tight Coupling means classes are stuck together too much. If you change one, the other breaks. It's like having a phone charger that only works with one specific phone model.

🌍 Real World Example:

Imagine you buy a car where the radio is permanently welded to the dashboard. If the radio breaks, you have to replace the whole dashboard! That's tight coupling.

💻 Bad Java Code Example:

// Tightly coupled - BAD!
class EmailSender {
    void sendEmail(String message) {
        System.out.println("Sending email: " + message);
    }
}

class NotificationService {
    private EmailSender emailSender = new EmailSender();  // Stuck with Email only!

    void notify(String message) {
        // Can ONLY send emails, nothing else
        emailSender.sendEmail(message);
    }
}

😢 Problems with Tight Coupling:

5. ✅ Loose Coupling (Good Way)

📖 Simple Explanation:

Loose Coupling means classes can work together but aren't stuck to each other. Like having a universal phone charger that works with any phone.

🌍 Real World Example:

Modern cars have standard ports (USB, aux, Bluetooth). You can connect any device that supports these standards. That's loose coupling!

💻 Good Java Code Example:

// Interface - the "standard"
interface MessageSender {
    void sendMessage(String message);
}

// Different implementations
class EmailSender implements MessageSender {
    public void sendMessage(String message) {
        System.out.println("📧 Email sent: " + message);
    }
}

class SMSSender implements MessageSender {
    public void sendMessage(String message) {
        System.out.println("📱 SMS sent: " + message);
    }
}

class WhatsAppSender implements MessageSender {
    public void sendMessage(String message) {
        System.out.println("💬 WhatsApp sent: " + message);
    }
}

// Loosely coupled - GOOD!
class NotificationService {
    private MessageSender sender;

    // Can accept ANY type of sender
    NotificationService(MessageSender sender) {
        this.sender = sender;
    }

    void notify(String message) {
        sender.sendMessage(message);  // Don't care HOW it sends, just send!
    }
}

🎯 How to Use (The Magic!):

public class Main {
    public static void main(String[] args) {
        String message = "Hello! Your order is ready.";

        // Same NotificationService can use different senders!
        NotificationService emailNotifier = new NotificationService(new EmailSender());
        emailNotifier.notify(message);

        NotificationService smsNotifier = new NotificationService(new SMSSender());
        smsNotifier.notify(message);

        NotificationService whatsappNotifier = new NotificationService(new WhatsAppSender());
        whatsappNotifier.notify(message);
    }
}
Output:
📧 Email sent: Hello! Your order is ready.
📱 SMS sent: Hello! Your order is ready.
💬 WhatsApp sent: Hello! Your order is ready.

😊 Benefits of Loose Coupling:

📊 Quick Comparison Table

Relationship Simple Meaning Real World Example Java Code Hint
IS-A One thing is a type of another Dog IS-A Animal class Dog extends Animal
HAS-A One thing contains another Car HAS-A Engine Engine engine = new Engine()
USES-A One thing uses another temporarily Student USES-A Library void study(Library lib)
Tight Coupling Classes stuck together (BAD) Welded car radio new SpecificClass() inside
Loose Coupling Classes work together but flexible (GOOD) Universal charger Use interfaces/parameters

🎓 Complete Example: All Concepts Together

📱 Let's Build a Simple Phone System

// Interface for loose coupling
interface Speaker {
    void playSound(String sound);
}

// Different speaker implementations
class LoudSpeaker implements Speaker {
    public void playSound(String sound) {
        System.out.println("🔊 LOUD: " + sound.toUpperCase());
    }
}

class SoftSpeaker implements Speaker {
    public void playSound(String sound) {
        System.out.println("🔉 soft: " + sound.toLowerCase());
    }
}

// Base class for IS-A relationship
class Device {
    protected String brand;

    Device(String brand) {
        this.brand = brand;
    }

    void powerOn() {
        System.out.println(brand + " device is turning on...");
    }
}

// Smartphone IS-A Device (Inheritance)
class Smartphone extends Device {
    private Speaker speaker;  // HAS-A Speaker (Association)

    Smartphone(String brand, Speaker speaker) {
        super(brand);  // Call parent constructor
        this.speaker = speaker;  // Loose coupling through interface
    }

    void makeCall(String number) {
        System.out.println("📞 Calling " + number + "...");
        speaker.playSound("Ring ring!");
    }

    // USES-A relationship - uses WiFi temporarily
    void browseInternet(WiFi wifi) {
        wifi.connect();
        System.out.println("🌐 Browsing internet on " + brand + " phone");
        wifi.disconnect();
    }
}

// Another class for USES-A relationship
class WiFi {
    private String networkName;

    WiFi(String networkName) {
        this.networkName = networkName;
    }

    void connect() {
        System.out.println("📶 Connected to " + networkName);
    }

    void disconnect() {
        System.out.println("📶 Disconnected from " + networkName);
    }
}

🎯 Using All Concepts:

public class Main {
    public static void main(String[] args) {
        // Create different speakers (loose coupling)
        Speaker loud = new LoudSpeaker();
        Speaker soft = new SoftSpeaker();

        // Create smartphones (IS-A Device, HAS-A Speaker)
        Smartphone iPhone = new Smartphone("iPhone", loud);
        Smartphone android = new Smartphone("Samsung", soft);

        // Create WiFi for USES-A relationship
        WiFi homeWifi = new WiFi("Home_Network");

        System.out.println("=== iPhone Demo ===");
        iPhone.powerOn();           // From Device class (IS-A)
        iPhone.makeCall("123-456"); // Uses internal speaker (HAS-A)
        iPhone.browseInternet(homeWifi); // USES-A WiFi

        System.out.println("\n=== Android Demo ===");
        android.powerOn();          // From Device class (IS-A)
        android.makeCall("789-012"); // Uses internal speaker (HAS-A)
        android.browseInternet(homeWifi); // USES-A WiFi
    }
}
Output:
=== iPhone Demo ===
iPhone device is turning on...
📞 Calling 123-456...
🔊 LOUD: RING RING!
📶 Connected to Home_Network
🌐 Browsing internet on iPhone phone
📶 Disconnected from Home_Network

=== Android Demo ===
Samsung device is turning on...
📞 Calling 789-012...
🔉 soft: ring ring!
📶 Connected to Home_Network
🌐 Browsing internet on Samsung phone
📶 Disconnected from Home_Network

🎯 Key Takeaways

Remember These Simple Rules:

🌟 Golden Rule: Always think "Can I easily change this later?" If the answer is no, you probably have tight coupling!

🎉 Congratulations!

You now understand all the important OOP relationships and coupling concepts!
Practice these concepts with your own examples to master them completely.
