Application Layer Protocols: Interview Notes

1. Overview of Application Layer Protocols

What is it? Top layer (Layer 7) of OSI/TCP-IP model. Enables end-user applications (e.g., browsers, email clients) to communicate over a network.

• Key Protocols:
  • HTTP/HTTPS: Web browsing
  • FTP: File transfers
  • DNS: Domain to IP resolution
  • DHCP: Dynamic IP assignment
  • SMTP/POP3/IMAP: Email communication

2. HTTP vs HTTPS

HTTP (HyperText Transfer Protocol)

• Purpose: Transfers web resources (e.g., HTML, images) between client and server.
• Port: 80
• Key Points:
  • Stateless: Each request is independent.
  • Plain text: Data unencrypted, vulnerable to interception.
  • Example: GET /index.html HTTP/1.1 fetches a webpage.
• Use Case: Non-sensitive websites (e.g., static blogs).

HTTPS (HTTP Secure)

• Purpose: Secure HTTP using SSL/TLS encryption.
• Port: 443
• Key Points:
  • Encrypts for confidentiality, integrity, authentication.
  • SSL/TLS handshake:
    1. Client sends supported protocols.
    2. Server responds with certificate (public key).
    3. Symmetric key established.
  • Trusted by Certificate Authorities (CAs).
• Use Case: Secure sites (e.g., banking, e-commerce).
• Example: Accessing https://www.amazon.com.

HTTP vs HTTPS

Feature	HTTP	HTTPS
Security	Unencrypted	Encrypted (SSL/TLS)
Port	80	443
Performance	Faster (no overhead)	Slower (encryption)
SEO	No benefit	Boosts ranking
Trust	No padlock	Padlock in browser

3. HTTP Methods

Definition: HTTP verbs specify client actions on server resources. Used in RESTful APIs for CRUD operations.

Key Methods

• GET:
  • Purpose: Retrieve a resource.
  • Traits: Safe, idempotent.
  • Example: GET /api/users/123 fetches user data.
  • Use Case: Viewing webpages, API data retrieval.
• POST:
  • Purpose: Create/update a resource.
  • Traits: Not idempotent.
  • Example: POST /api/users with { "name": "John" }.
  • Use Case: Form submissions, file uploads.
• PUT:
  • Purpose: Update/create a resource at a specific URL.
  • Traits: Idempotent.
  • Example: PUT /api/users/123 updates user details.
  • Use Case: Updating profiles.
• DELETE:
  • Purpose: Remove a resource.
  • Traits: Idempotent.
  • Example: DELETE /api/users/123 deletes a user.
  • Use Case: Removing records.

Other Methods

• PATCH: Partial updates (e.g., { "email": "new@example.com" }).
• HEAD: Retrieves headers only.
• OPTIONS: Lists allowed methods.

4. HTTP Status Codes

Definition: Three-digit codes indicating HTTP request results (1xx: Informational, 2xx: Success, 3xx: Redirection, 4xx: Client Error, 5xx: Server Error).

Key Status Codes

• 2xx (Success):
  • 200 OK: Request succeeded.
  • 201 Created: Resource created.
  • 204 No Content: Success, no body.
• 3xx (Redirection):
  • 301 Moved Permanently: Resource moved.
  • 302 Found: Temporary redirect.
  • 304 Not Modified: Resource unchanged.
• 4xx (Client Error):
  • 400 Bad Request: Invalid syntax.
  • 401 Unauthorized: Authentication required.
  • 403 Forbidden: Access denied.
  • 404 Not Found: Resource missing.
  • 429 Too Many Requests: Rate limit hit.
• 5xx (Server Error):
  • 500 Internal Server Error: Generic issue.
  • 502 Bad Gateway: Invalid upstream response.
  • 503 Service Unavailable: Server down.

5. FTP – File Transfer Protocol

• Purpose: Transfers files between client and server.
• Port: 21 (control), 20 (data, active mode).
• Modes:
  • Active: Server initiates data connection.
  • Passive: Client initiates (firewall-friendly).
• Commands: GET (download), PUT (upload), LIST (directory), DELE (delete).
• Security: Unencrypted, vulnerable.
• Secure Alternatives:
  • FTPS: FTP with SSL/TLS (ports 989/990).
  • SFTP: File transfer over SSH (port 22).
• Use Case: Uploading website files, backups.

6. DNS – Domain Name System

• Purpose: Translates domains (e.g., www.google.com) to IPs (e.g., 142.250.190.78).
• Name Resolution Process:
  1. Client queries URL.
  2. Checks cache or hosts file.
  3. Recursive resolver queries root servers.
  4. TLD servers direct to authoritative server.
  5. Authoritative server returns IP.
  6. Resolver caches and sends IP to client.
• Port: UDP 53 (queries), TCP 53 (large responses).
• Record Types:
  • A: IPv4 address.
  • AAAA: IPv6 address.
  • CNAME: Alias.
  • MX: Mail server.
  • NS: Name server.
• Security: Vulnerable to spoofing; DNSSEC adds authentication.
• Caching: Speeds up queries.

7. DHCP – Dynamic Host Configuration Protocol

• Purpose: Assigns IP addresses and network settings dynamically.
• DORA Process:
  1. Discover: Client broadcasts DHCPDISCOVER.
  2. Offer: Server sends DHCPOFFER (IP, subnet, gateway).
  3. Request: Client sends DHCPREQUEST.
  4. Acknowledge: Server sends DHCPACK.
• Port: UDP 67 (server), 68 (client).
• Lease: Temporary IP assignment.
• Parameters: IP, subnet mask, gateway, DNS servers.
• Use Case: Wi-Fi networks, office LANs.

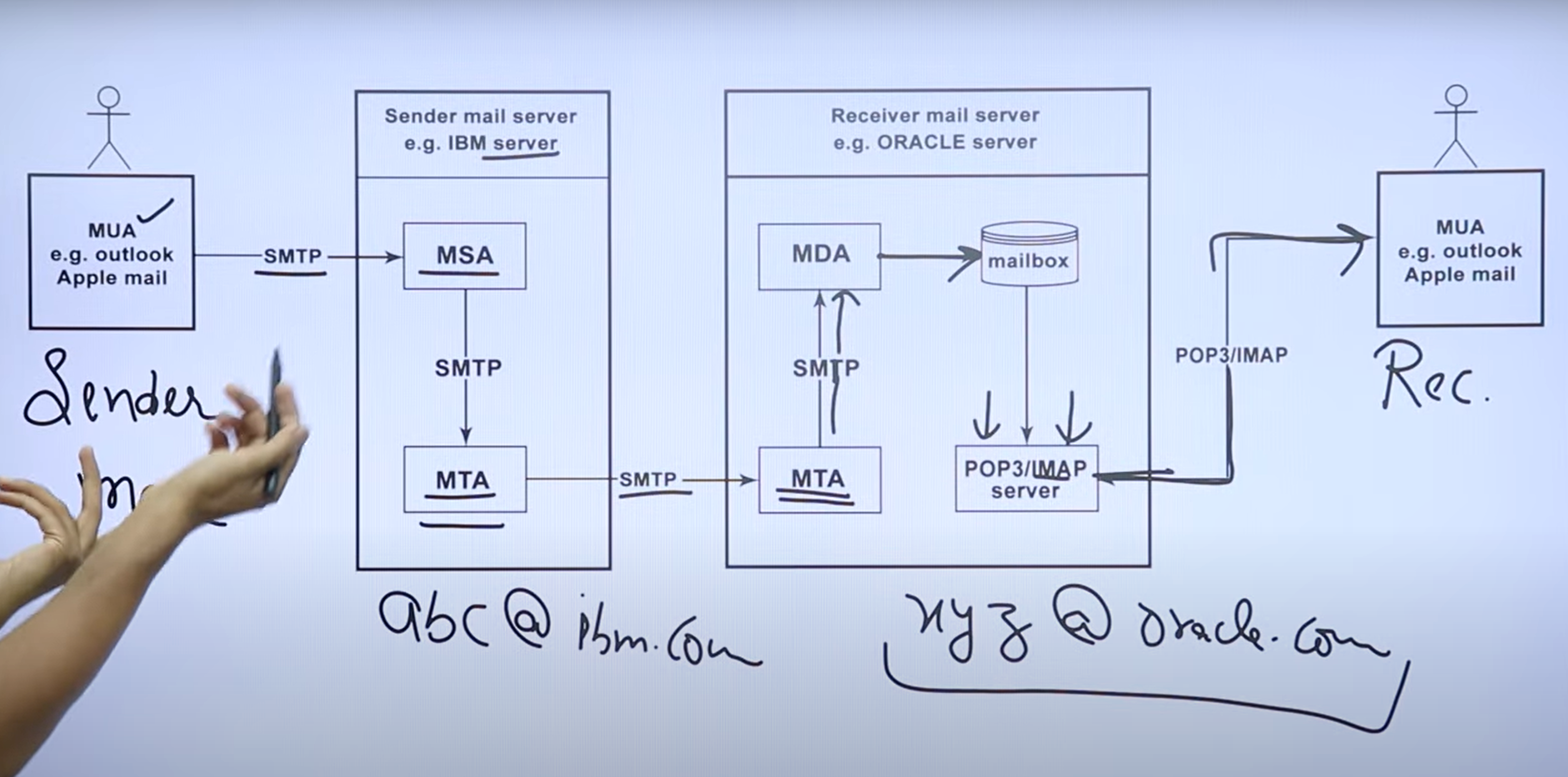

8. Email Protocols – SMTP, POP3, IMAP (use UDP or TCP)

SMTP – Simple Mail Transfer Protocol

• Main job: Push (send) emails from you to someone else.
• Ports: 25 (basic), 587 (secure), 465 (secure).
• Example: You click "Send" in Gmail → Email goes to your friend.

POP3 – Post Office Protocol, Version 3

• Main job: Download emails from the server to your device.
• What happens: After download, emails are usually removed from the server (stay only on your device).
• Ports: 110 (basic), 995 (secure).
• Example: You open Outlook → Emails come to your computer → Not available on phone.

IMAP – Internet Message Access Protocol

• Main job: Sync emails between the server and all your devices.
• What happens: Emails stay on the server, so you can read them on phone, laptop, or tablet and see the same messages everywhere.
• Ports: 143 (basic), 993 (secure).
• Example: You read an email on your phone → It shows as read on your computer too.

POP3 vs IMAP (Simple Difference)

• POP3: Download and keep on one device (like taking letters from the post office and keeping them at home).
• IMAP: Sync and keep on the server (like leaving letters in the post office, but you can read them from anywhere).

Easy Comparison Table

Protocol	Main Job	Secure Port	Where Emails are Stored	Works on Many Devices?
SMTP	Push (send) emails	587, 465	Not for storage	No
POP3	Download emails	995	Only on your device	No
IMAP	Sync emails	993	On the server	Yes

Quick Reference Table

Protocol	Purpose	Port (Secure)	Security
HTTP	Web communication	80	None
HTTPS	Secure web communication	443	SSL/TLS
FTP	File transfer	21, 20	FTPS/SFTP
DNS	Domain to IP resolution	53	DNSSEC
DHCP	Dynamic IP assignment	67, 68	None
SMTP	Send email	587, 465	TLS/SSL
POP3	Retrieve email (download)	995	SSL/TLS
IMAP	Retrieve email (sync)	993	SSL/TLS

Interview Strategies

• Be Concise: Explain protocols in 1-2 sentences, elaborate if asked.
• Use Examples:
  • HTTP: Fetching a webpage.
  • HTTPS: Online banking.
  • DNS: Resolving google.com.
  • DHCP: Connecting to Wi-Fi.
  • SMTP: Sending an email.
• Highlight Security:
  • HTTPS uses SSL/TLS.
  • SFTP over FTP.
  • DNSSEC for DNS.
  • TLS for email protocols.
• Know Processes:
  • DNS resolution steps.
  • DHCP DORA process.
  • HTTP request-response cycle.
• Practice Questions:
  • Explain HTTP vs HTTPS.
  • What are idempotent methods?
  • Why is 404 different from 403?
  • How does DNS resolve a domain?
  • What’s the DORA process in DHCP?
  • Why use IMAP over POP3?

Sample Interview Q&A
